3nh Colour Measurement Device Colorimeter Spectrophotometer Food Food

Brand Name : 3nh

Model Number : NS800

Certification : CE, TUV, FCC, ISO9001, RohS

Place of Origin : Shenzhen, China

MOQ : 1 Unit

Price : Please send inquiry

Payment Terms : T/T, L/C, Western Union

Supply Ability : 500 Units per Month

Delivery Time : 2-5 work days

Packaging Details : 46*25*38cm, 4.5kg, Alluminum Box

Illuminant : D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12

Color Space : CIE LAB, XYZ, Yxy, LCh, CIE LUV

Color Difference Formula : ΔE*ab, ΔE*uv, ΔE*94, ΔE*cmc(2:1), ΔE*cmc(1:1), ΔE*00v

Measuring Aperture : 8mm

Reflectance Range : 0-200%

Data Storage : 1000 Standards, 15000 Samples

Contact Now

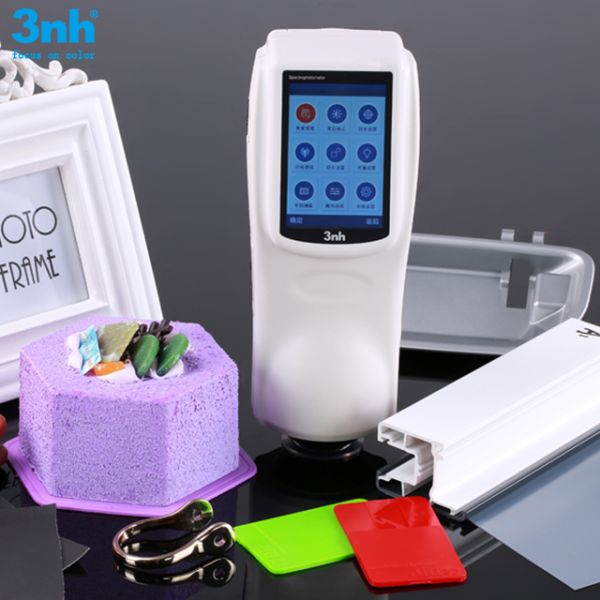

Color Test Chroma Meter Spectrophotometer 3nh NS800 with 45°/0 Optical Geometry and 0.04 Repeatibility

NS800 color spectrophotometer is developed by 3nh with independent intellectual property rights.It uses 45/0 geometrical optical structure, comply with CIE No.15, GB/T 3978. With human body engineering mechanics and humanized operation design, NS800 color spectrophotometer has stable performance precise measurement and powerful functions in the leading position of the same industry.

Technical Specification

Parameters	Spectrophotometer NS800
Optical Geometry	45°/0
Inte-grating Sphere Size	Φ58mm
Measuring Aperture	Φ8mm
Repeatibility	ΔE*≤0.04
Inter-instrument Agreement	ΔE*≤0.2
Observer Angle	2° & 10°
Wavelength Range	400-700nm
Wavelength Pitch	10nm
Reflectance Range	0-200%
Color Space	CIE LAB, XYZ, Yxy, LCh, CIE LUV
Color Difference Formula	ΔEab, ΔEuv, ΔE94, ΔEcmc(2:1), ΔEcmc(1:1), ΔE00v
Displayed Data	Spectral Value/Graph, Colorimetric Value, Color Difference Value/Graph, PASS/FAIL Result, Color Offset, Color Simulation
Other Chromaticity Data	WI(ASTM E313, CIE/ISO, AATCC, Hunter), YI(ASTM D1925, ASTM 313), TI(ASTM E313, CIE/ISO), Metamerism Index (Mt), Color Strength, Color Stain, Color Fastness
Illuminant	D65, D50, A, C, D55, D75, F2, F6, F7, F8, F10, F11, F12
Illuminant Device	Combined LED Light
Illuminant Lifespan	5 years, More than 1.6 million measurements
Sensor	Silicon Photoelectric Diode Array
Data Storage	1000 Standards, 15000 Samples
Data Port	USB
Display Size	TFT 3.5"
Touch-Screen	Yes
Working Temperature	0~40℃(32~104℉)
Storage Temperature	-20~50℃(-4~122℉)
PC Software	SQC8
Weight	600g
Dimension	9077230mm
Battery	3200mAh Large Capacity Li-ion Battery
Standard Accessory	Power Adapter, Li-ion Battery, Operating Instruction, CD-ROM(containing color management software), USB Cable, White and Black Calibration Cavity, Protective Cover and Wrist Strap.
Optional Accessory	Universal Test Components, Micro Printer, Powder Test Box

Applications:

3nh colorimeter spectrophotometer is widely used in plastic, electronic, paint, ink, textile, garment, printing and dyeing, food, medical, cosmetic industries, scientific research institutes, schools and laboratories. It can measure reflectance spectrum and other color index precisely. NS800 color spectrophotometer not only can help to perform color matching and color management studies, but also can control product quality management. 3nh colorimeter is equipped with high-end color management software that can connect to PC to achieve more extension functions.
